Project Overview

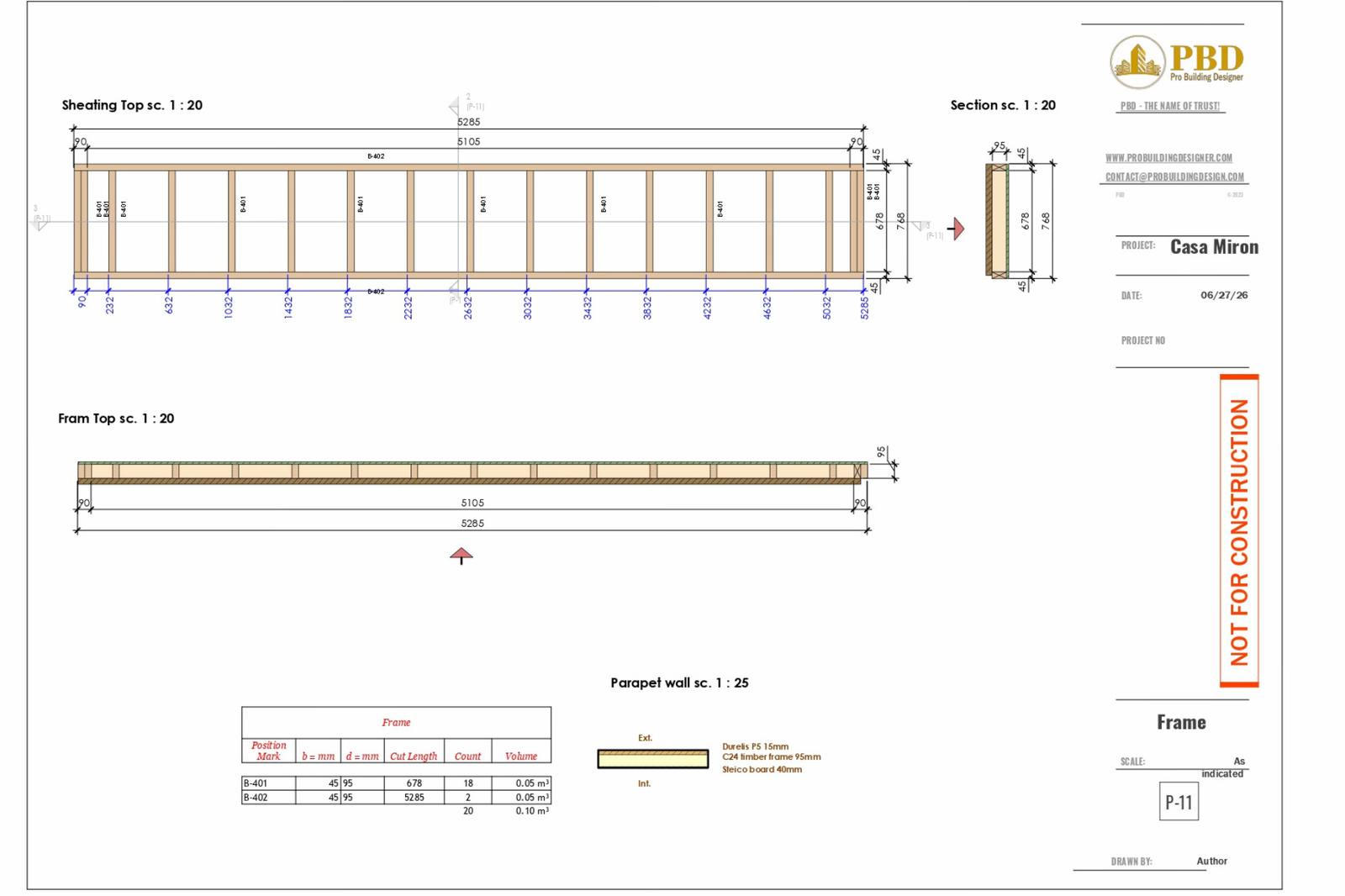

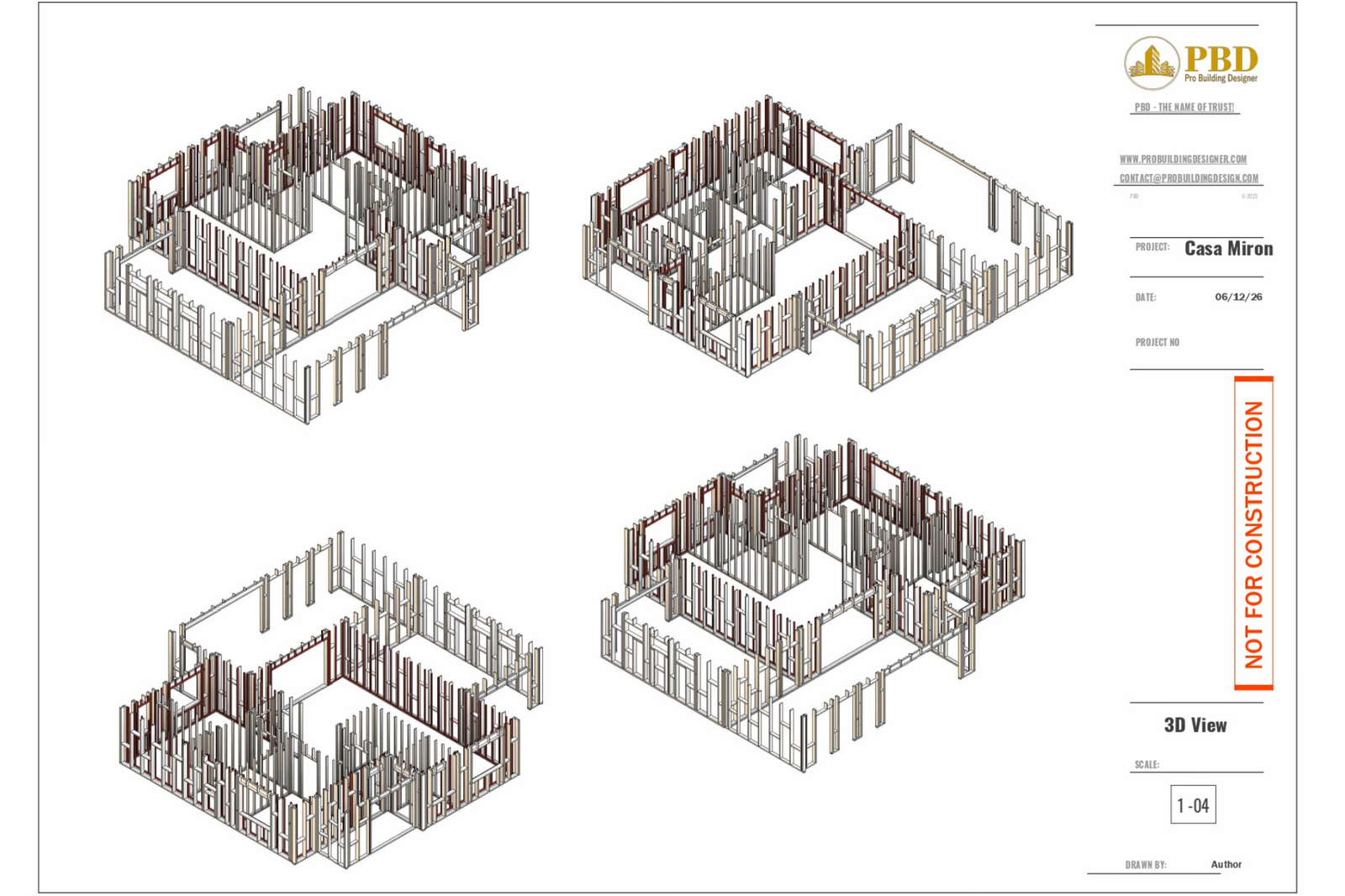

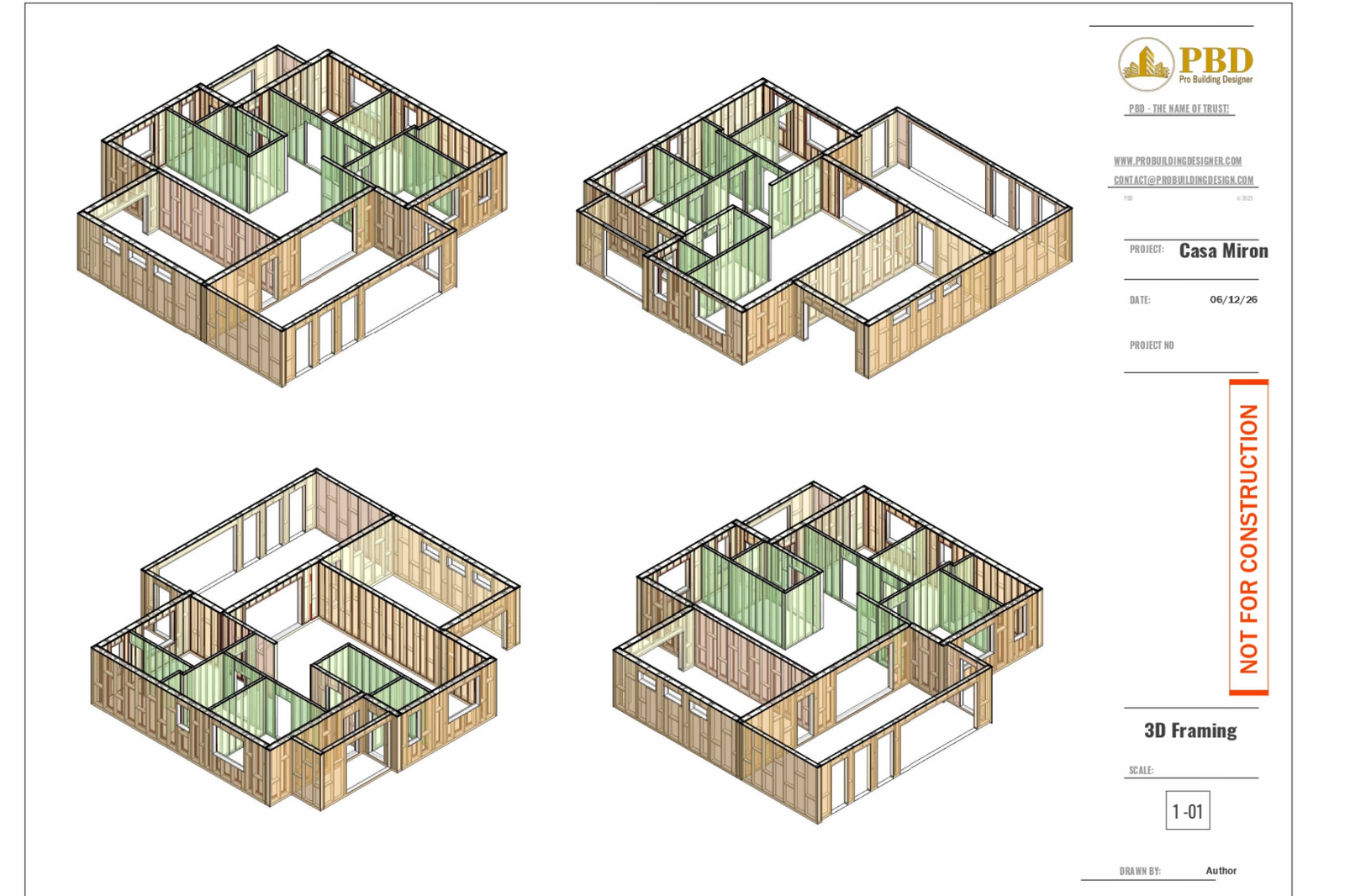

BCasa Miron is a timber-framed panelized residence developed through a production-focused BIM workflow. The project scope included coordinated structural framing models, detailed exterior and interior wall panels, roof cassette assemblies, parapet framing, and fabrication-ready shop drawings prepared to support manufacturing and assembly.

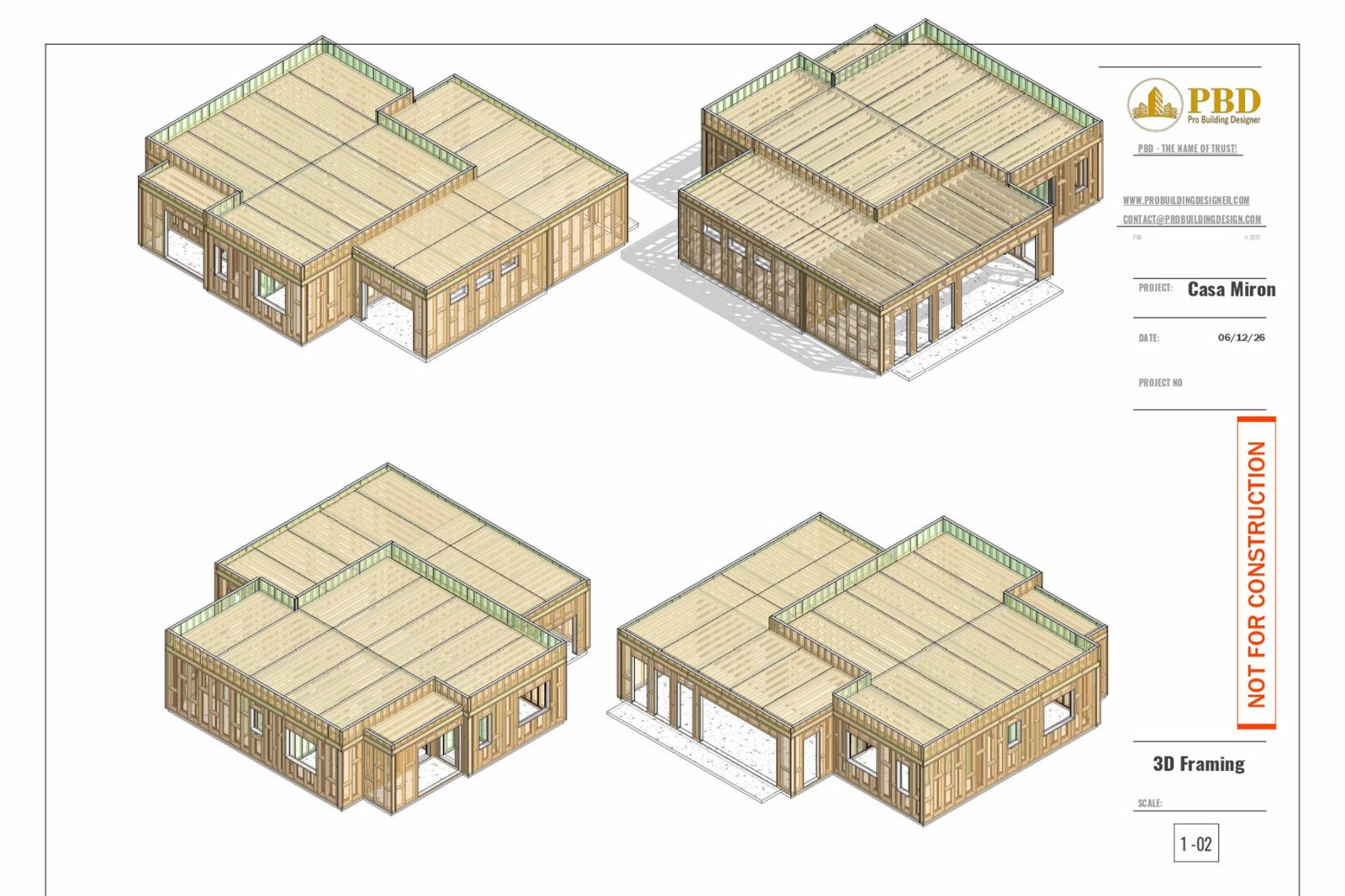

- Production-ready timber framing BIM

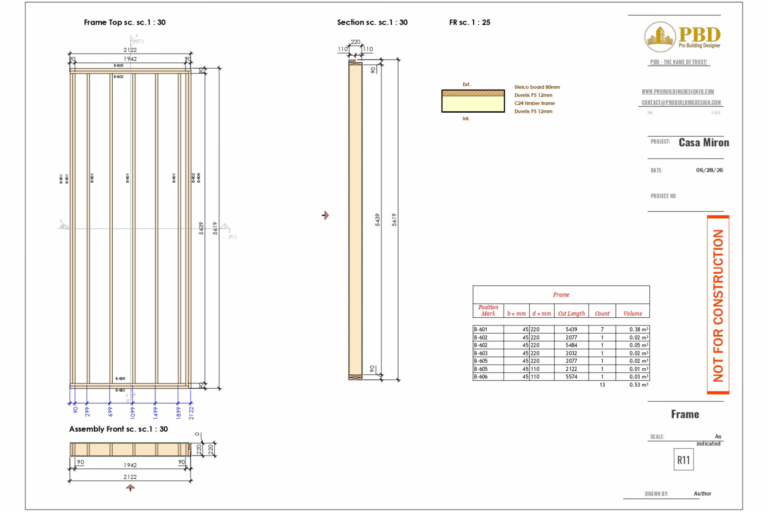

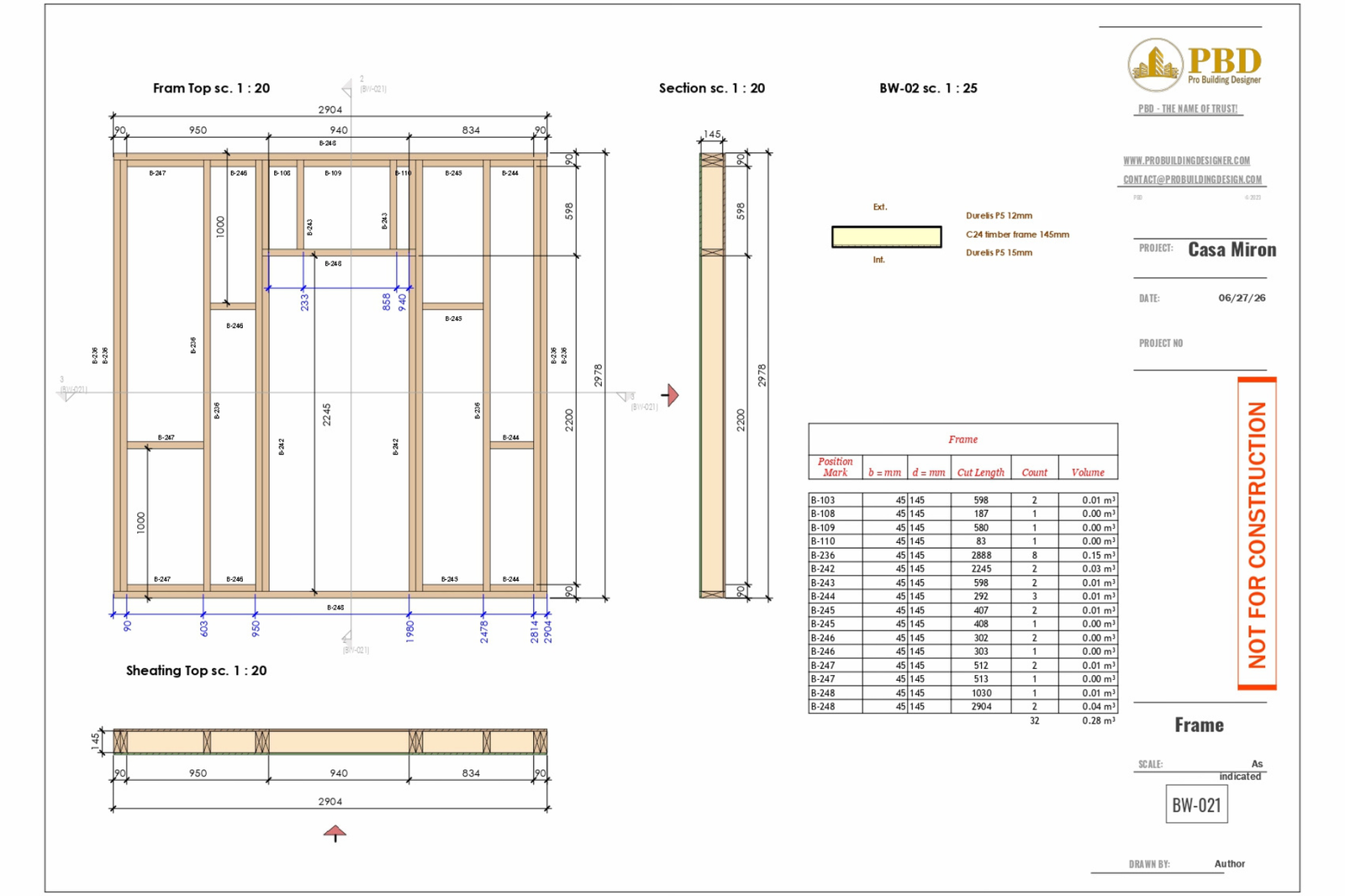

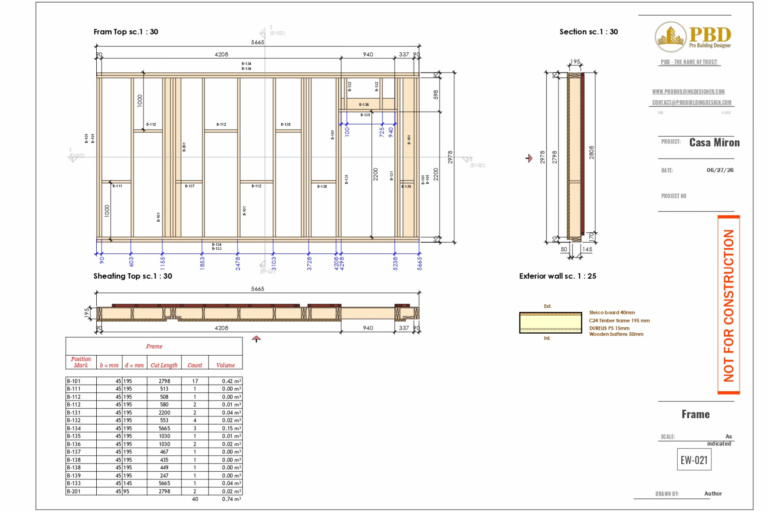

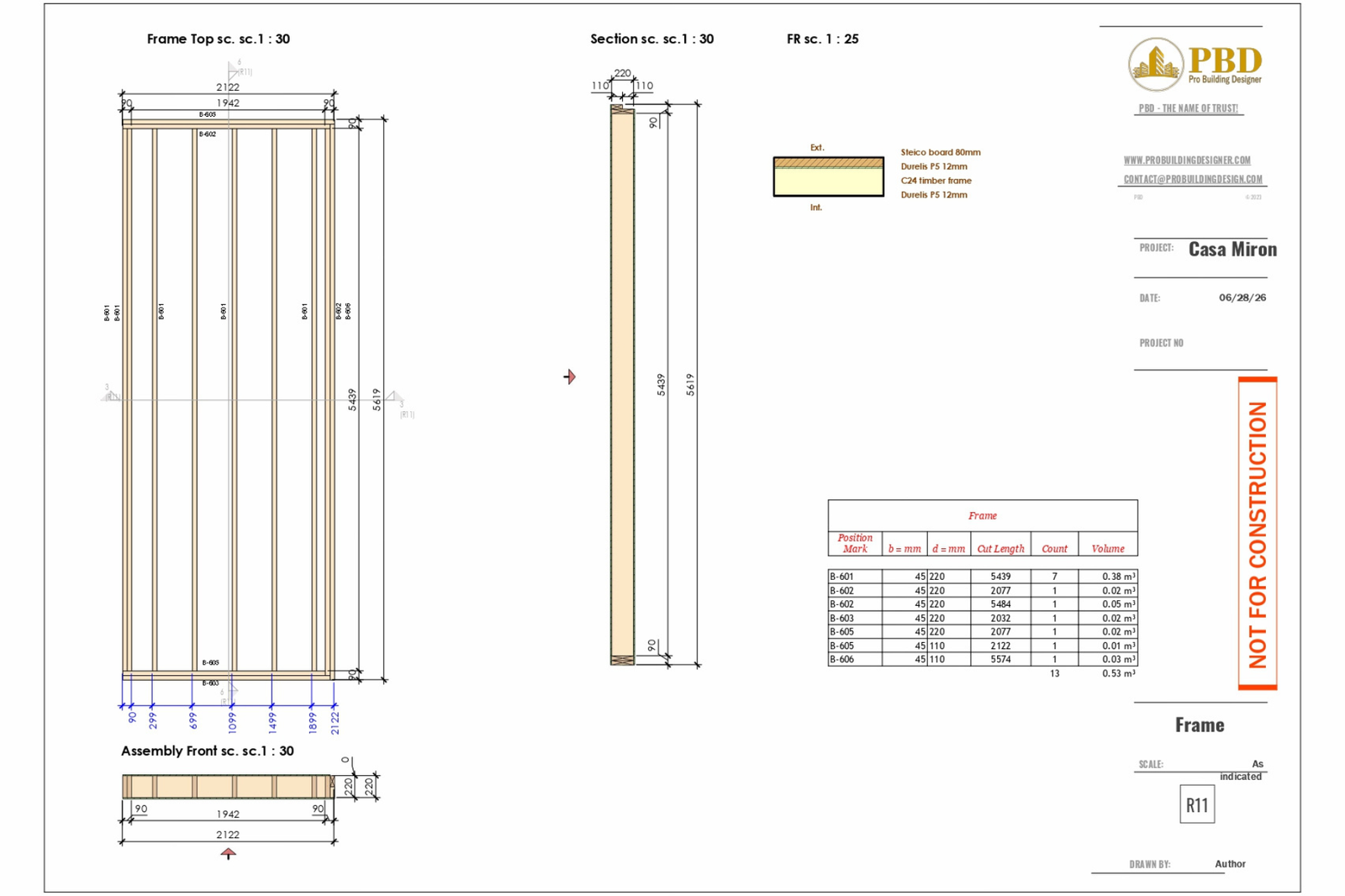

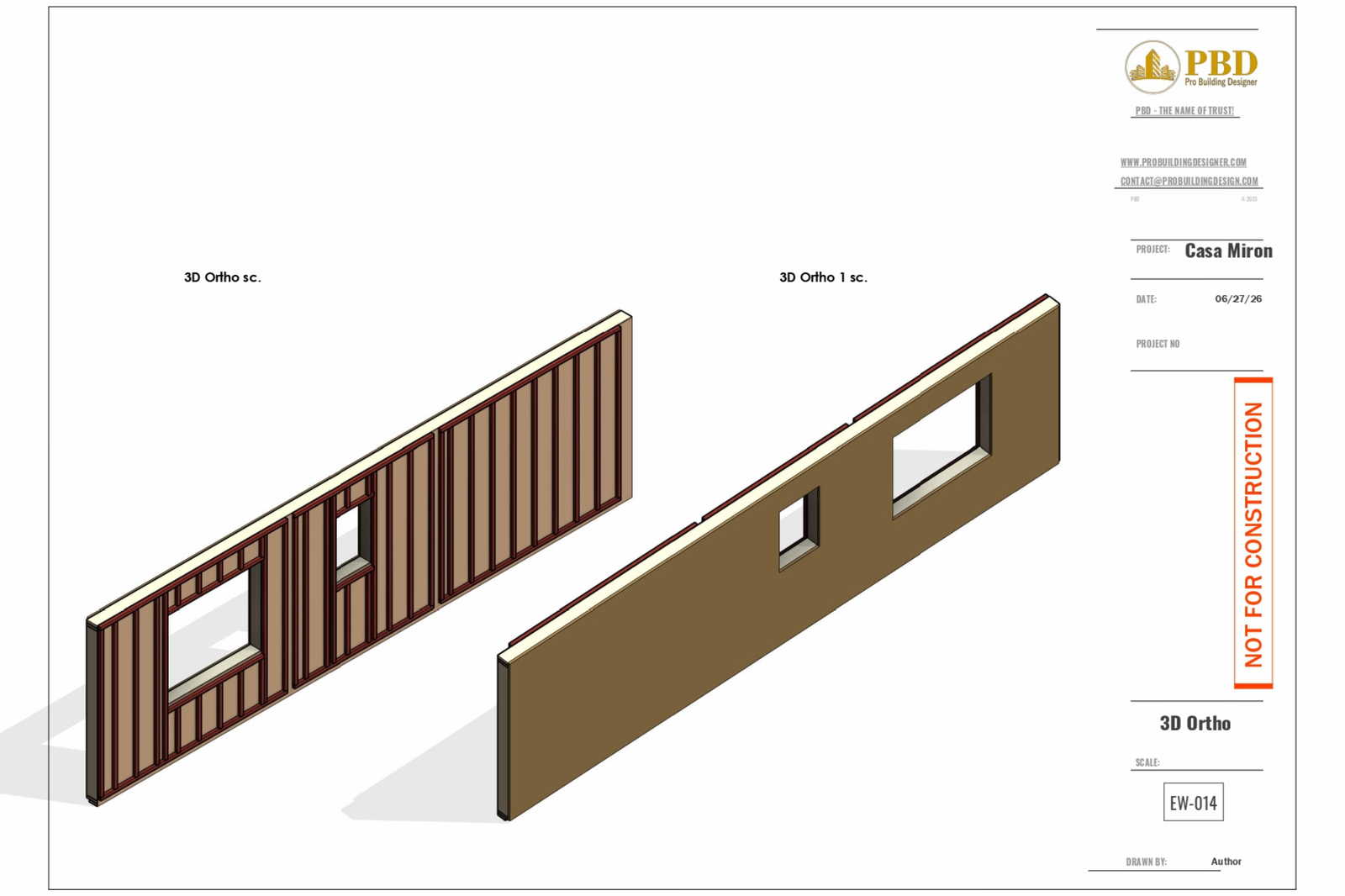

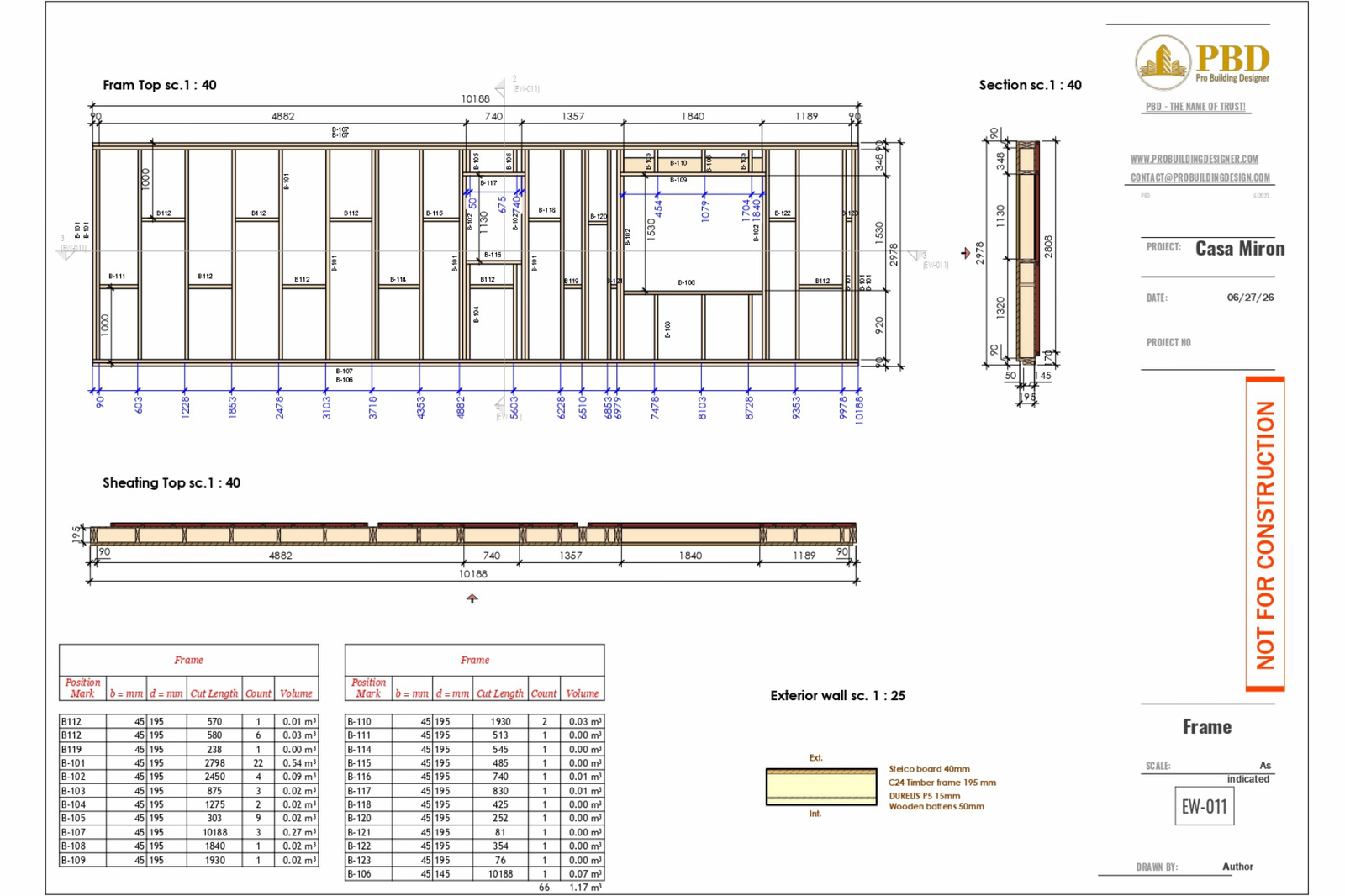

- Exterior wall-panel shop drawings

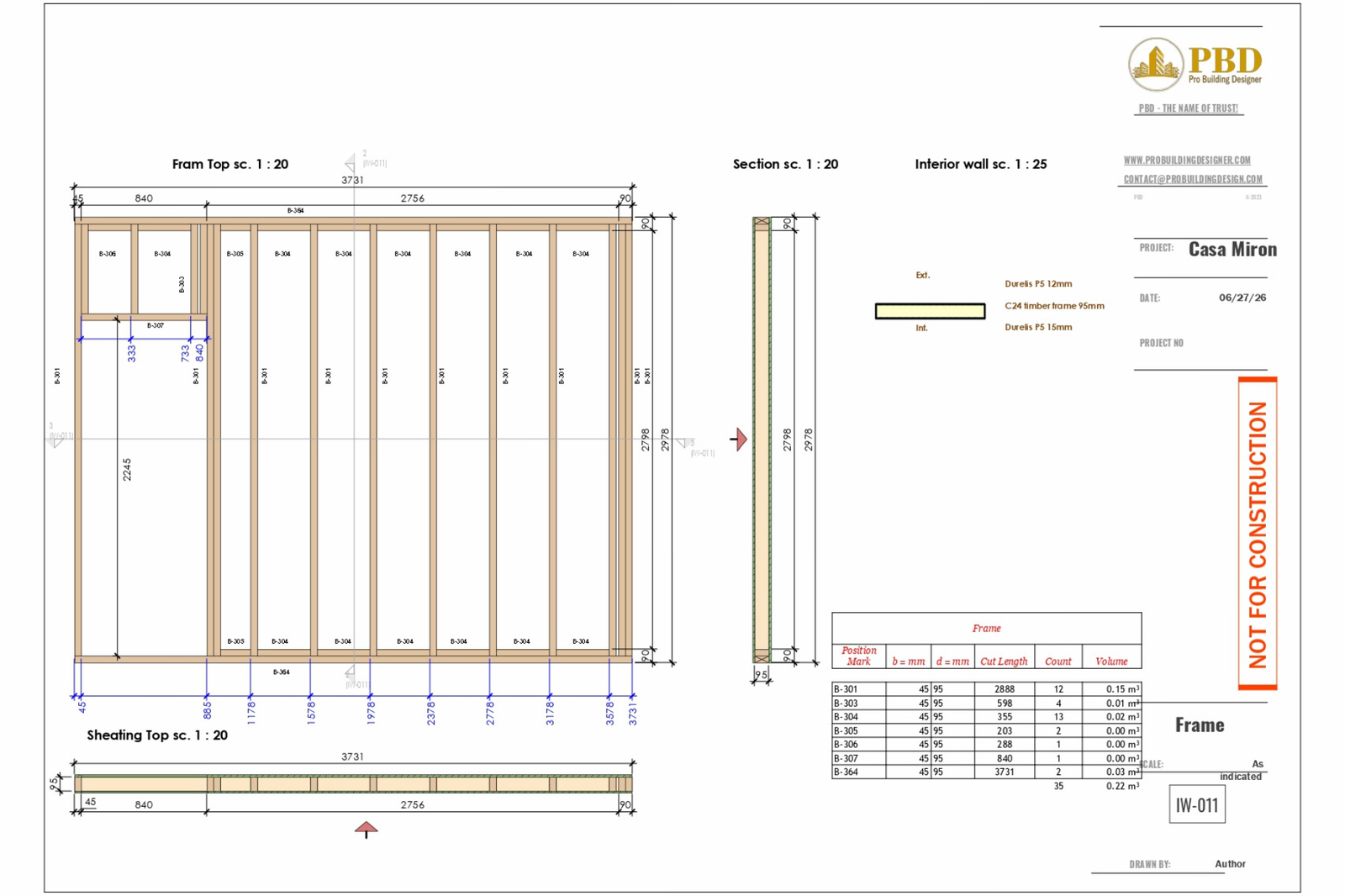

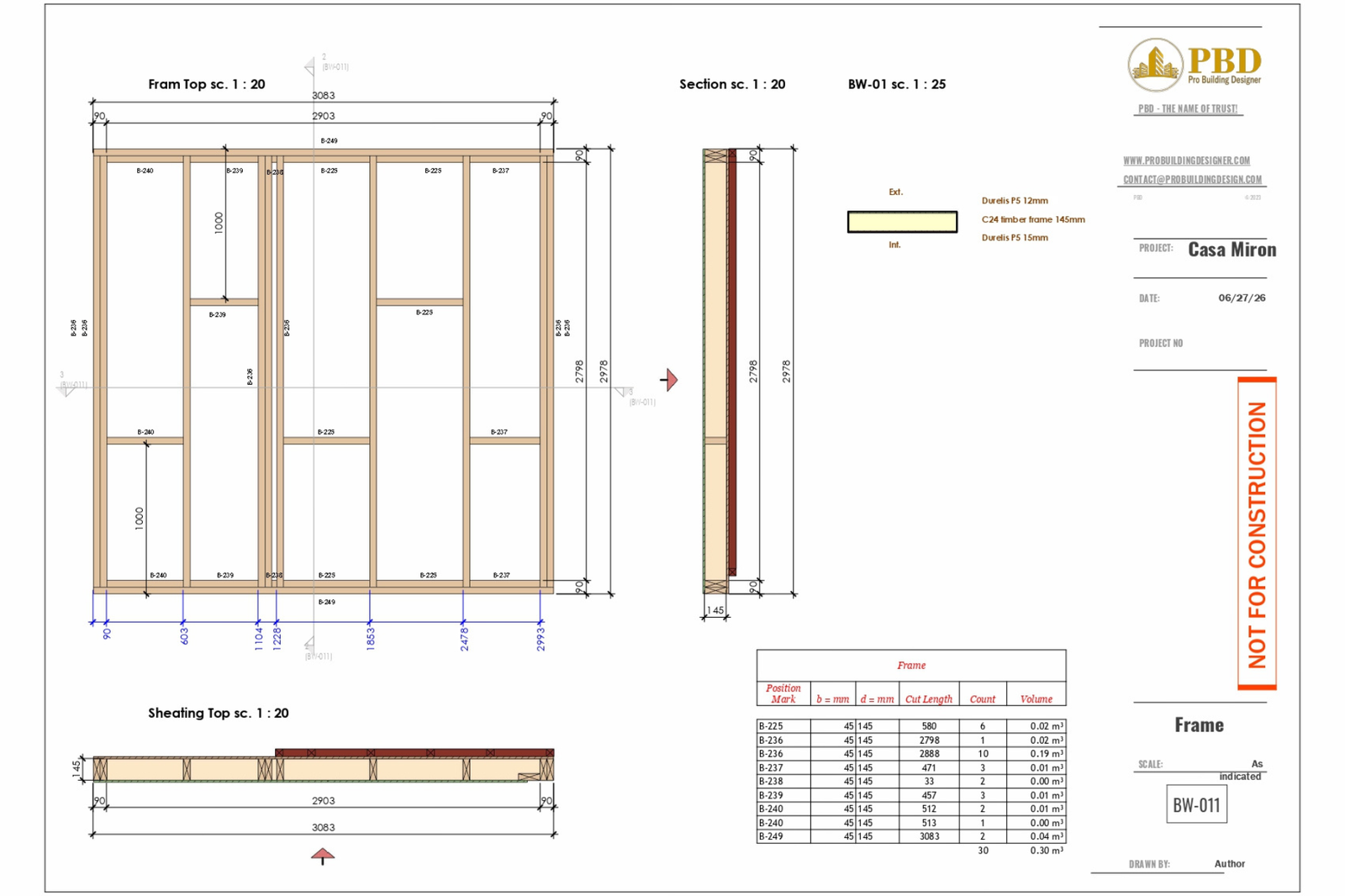

- Interior wall-panel documentation

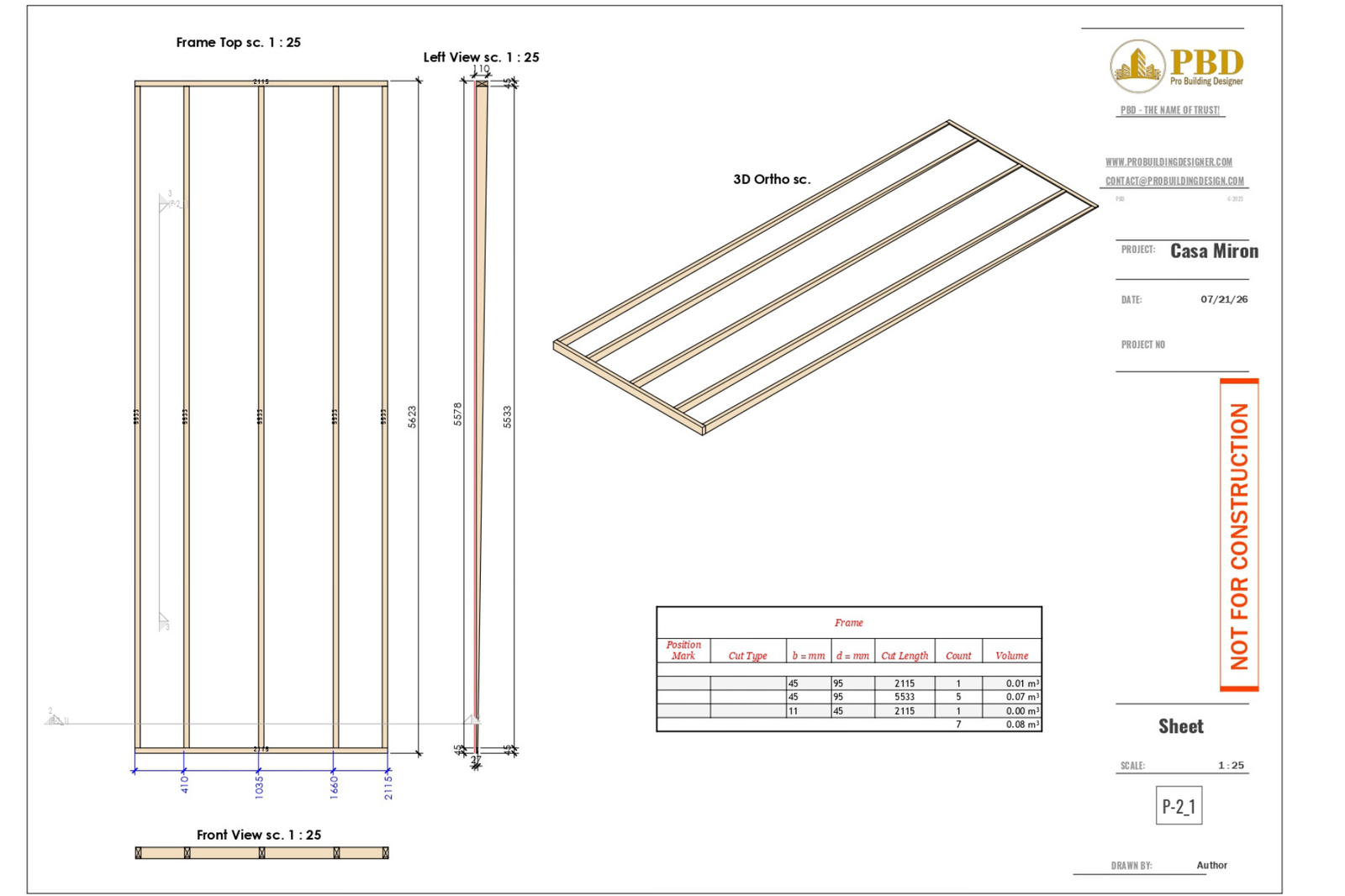

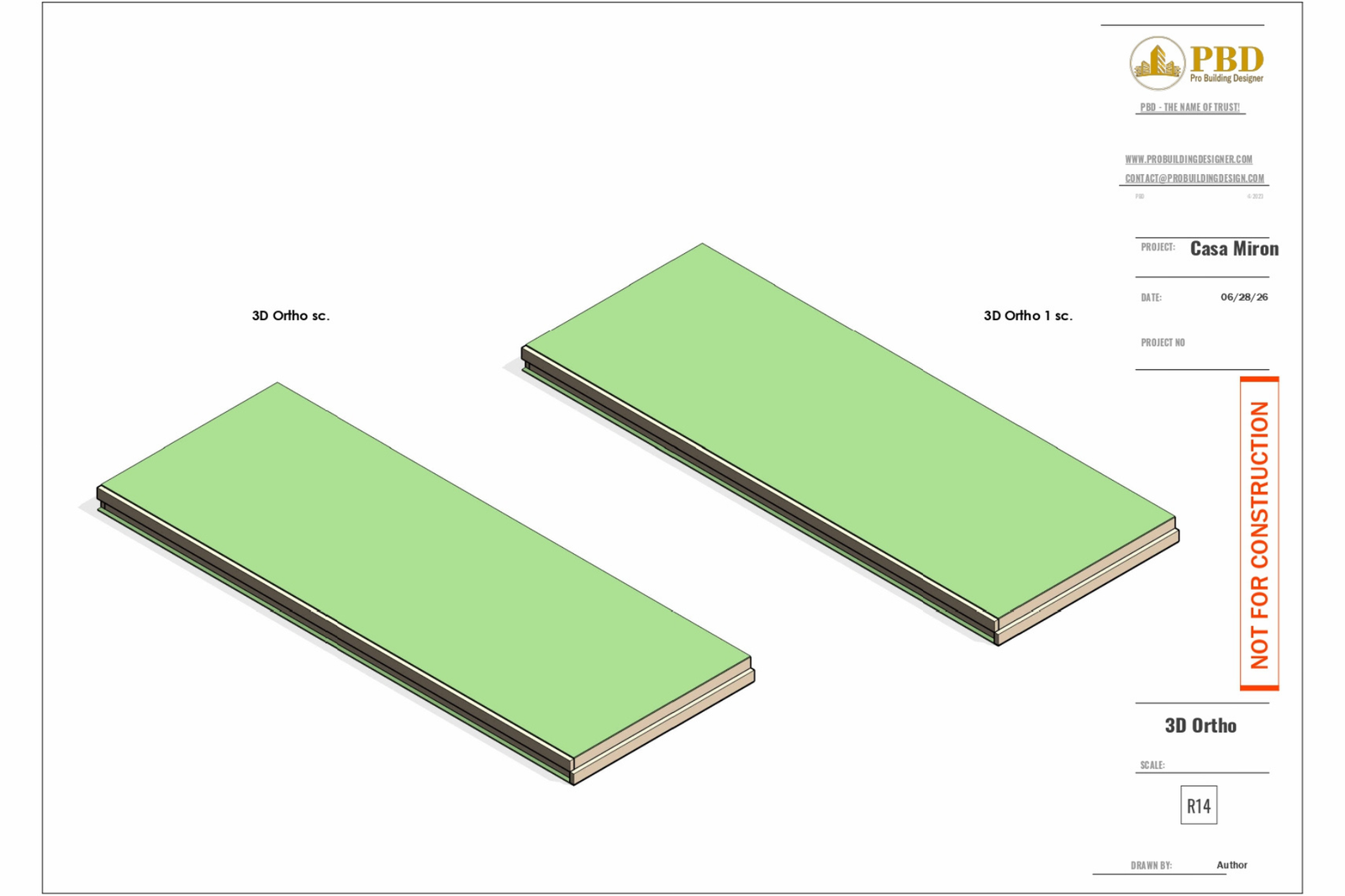

- Roof cassette fabrication drawings
- Member schedules and cut lengths
- Coordinated panel assembly details
The project demonstrates a complete panelized construction workflow, progressing from the coordinated building model to individual wall panels, roof cassettes, parapet assemblies, sheathing layouts, sections, and material schedules. Each component was documented with the dimensions, member identification, quantities, and assembly information required for an efficient production process.
- Client : Confidential Client
- Project Type : Timber Panelized Residence
- Location : USA
- Services : Structural BIM, Timber Framing, Shop Drawings, Panel Detailing, Production Documentation
More shots
PROJECT DELIVERABLES
A comprehensive collection of coordinated BIM models, timber-panel assemblies, framing schedules, and fabrication-ready shop drawings developed to support offsite manufacturing and efficient project delivery.
